Ratchet Wall Plate 1 in.

by

Ratchet Wall Plate for 1 in. Webbing.

Use to tie loose webbing to wall, concrete ground, or wooden surface.



  • Part: C1282-1
  • Shipping Weight: 3.5lbs



Possibilities Poster 2019 (27X39 In.)

by

The Tent Possibilities Poster is a comprehensive fittings diagram poster which can help rental company illustrate many fittings to use in frame tents.



Currently given free to industries.

  • Part: possibilities2019

Hexagon Left Side Corner

by

Hexagon Left Corner is for 6 sided tent that can expand with a standard frame.



Please make sure to review the drawing and Hexagon requirement before ordering.

The hexagon’s size is measured from edge to edge of the hex.

  • Part: C1343
  • Shipping Weight: 7 Lbs

Hexagon Right Side Corner

by

Hexagon Right Corner is for 6 sided tent that can expand with a standard frame.



Please make sure to review the drawing and Hexagon requirement before ordering.

The size of the hexagon is measured from edge to edge of the hex.

  • Part: C1344
  • Shipping Weight: 7 Lbs

Pole Clamp – Fixed 90 Degree

by

Pole/Pipe Clamp. Use for clamping 2 in. tube only.

This clamp is a universal clamp used for hanging flag, spacer for legs and spreader, and so many uses.

One size only, we will only guarantee to fit our 2 in. aluminum and pipe fittings only.

Below is a shade structure that we build with the quick clamp:

Building Shade Structure using swivel quick clamp C1043

  • Part: C1044
  • Shipping Weight: 2.5lbs

20×20 Quick Peak Conversion

by

20×20 Complete Quick Peak Style Frame Tent.

This frame comes with standard 2 in. poles & the top peak conversion to make this work on standard frame.



Features:

– Certified Fire Retardant with Industrial Grade Blackout Fabric
– Can be permitted for commercial multi-day use (not pop-up)
– Better wind load
– Stylish looks
– Setup faster than traditional standard tent
– Secure with baseplate on feet or standard stakes and ropes
– 2 in. aluminum framing which is interchangeable with other sizes and systems.

Standard Quick Peak Tent include:
– Blackout 15 oz. Fabric
– 2 in. frame
– base plates, tie-down rope, white flag

Packing List:

  – Frames:

8 – 9′-4″  Aluminum Spreaders
4 – 10′-6″ Aluminum Rafter
4 – 14′-4″ Aluminum Hip Rafter
4 – 7′-8″  Aluminum Legs
1 – Conversion Mast Set (3 pcs)
4 – Tension Corner C1001-T
4 – Side Tee Joint C1003
1 – 8 Way Crown

  – Tops:

1 – Tent top
4 – Ratchet Ropes 1 in.  (for stretching top to frame)

– Accessories available include: Additional tie-down ropes, stakes, rain-gutters, sidewalls, and more. Additional tie-downs are needed for securing tent for stability.

– We also carry color tops for this tent including red, white, blue, green, yellow, or a combination.  Color tops can also be available in horizontal or vertical stripes.  Extra charges apply.

 We carry more than 500 accessories to customize this tent. Please call us for accessories, options and details.
  • Part: QP20X20-conv
  • Shipping Weight: 425 lbs.

One Way 2 in. Quick Clamp Adjustable – Drill every 3 in.

by

Introducing the One Way 2 in. Quick Clamp Adjustable, a versatile tool designed to revolutionize your woodworking and DIY projects. This innovative clamp is engineered for efficiency and precision, offering a seamless solution for securing materials in a variety of applications.

At the heart of its design is the 2-inch quick clamp mechanism, allowing for swift and secure material fastening. The adjustable feature adds an extra layer of convenience, ensuring compatibility with different workpieces. Whether you’re working on woodworking projects, assembling furniture, or tackling household repairs, this clamp is your reliable companion.

One standout feature of this Quick Clamp is its unique drilling capability. With precision in mind, the clamp is equipped to facilitate drilling at every 3-inch interval. This not only ensures uniformity in your projects but also eliminates the guesswork, enabling you to achieve consistent results effortlessly.

The adjustable design allows for a customized fit, accommodating various material sizes and shapes. The clamp’s robust construction ensures durability, providing a reliable grip that stands up to the demands of your projects. The user-friendly design makes it easy for both professionals and DIY enthusiasts to handle tasks with confidence.

Whether you’re a seasoned woodworker or a hobbyist looking to enhance your workshop, the One Way 2 in. Quick Clamp Adjustable is a game-changer. It streamlines your workflow, saving you time and effort while delivering impeccable results.

This One Way 2 in. Quick Clamp is versatile, adjustable with holes every 3 in. to fit your need.

Uses are:

1. Add A Leg.

clamp additional support to existing 2 in. frame

Add rafter, hip, or sign structure.





  • Part: C1098-Q

Raingutter – One Sided (for attach to Buildings – Other Structures)

by

One ended rain gutter has one side to accommodate the rope line in the existing tent.  The other end has grommets so you can rope-tied to other structures.  It also features sewed webbing to also drive anchor bolts through the fabrics/webbing to permanently secure the gutter.

Features:

  • 15  Vinyl with CA Fire standards
  • Stainless steel buckles – grommets
  • 2 in. webbing sewed into one end – hemmed with grommets every 12 in.
  • Need about 3 – 24 in. spacing from tent to wall



Please note, installation with proper tooling is needed and is not provided.  You also may need to measure the existing structure/tent to make sure the gutter will fit the space required before ordering.



Gable 4 Way Joint (offset 2″ for leg)

by

Gable 4-way joint, for use with 4-way gable crown on larger tents such as 20x, 30x, and 40x.

with 2 in. lower leg recessed.

*** NOTE ***  Make sure there might be a newer version of these fittings…..

G05-A, offset for 2 in. lower to accommodate Gable corners pole

  • Part: G05-A
  • Shipping Weight: 6.5lbs

Shackles 3/8 in.

by

3/8 in. Galvanized Shackles to hold the cable in place.

Shackle 3/8″ for use as cable stabilizer, Cable extender. With Screw pin anchor.

Parts:

  • C1281-38

Wood Back Clamp Plate

by

Wood Back Clamp Plate for 2 in. or double tube pole.

Usually this clamps onto the leg to make sign mounts, electrical panel mounts, TV mounts,  and much more.

Available for either 2 in. pole or double tube pole.

For securing 2 in. tube into existing walls.

  • Part: Special ***
  • Shipping Weight: 10 lbs.



Bally Rail Set 36 in. x 20 ft. Steel Pole D-Tube Slide Clamp

by

Introducing Bally Rail Set  36 ft. x 20 ft. Steel Pole D-Tube Slide Clamp

Elevate your workspace or outdoor tent setup with the 10 ft long Single Rail Bally Rail, a versatile solution for partitions, counters, and safety rails. Its adaptability extends to securing sidewalls during windy conditions, ensuring stability and protection. This sturdy rail comprises a 10ft steel bar set, conveniently connected by a push button for seamless assembly. The set includes two C1071 D-Tube Slide Clamp, 2 – C1071 D-Tube Slide Clamp, ensuring secure attachment to any surface. With a 2 – 3/8″ Nuts and Bolts, and 1 – Steel Pole 20 feet with welded tab, the Rail offers exceptional strength and durability.

Steel Bally can be used for crowd control, barrier, or banner hanger. The slide clamp can slide into place before the tent is assembled or when the tent is light enough to lift after construction. Crafted with precision and engineered for durability.
(note: See DT Quick Clamp for a clamp that can attach after tent construction.)

Bally Rail Set  36 ft. x 20 ft. Steel Pole D-Tube Slide Clamp Features

  • 20ft long for versatile applications: This extended length makes the ideal for creating partitions, counters, and safety rails in various settings.

  • Ideal for partitions, counters, and safety rails: Whether you need to divide a large space, create a serving area, or enhance safety measures, the Bally Rail is a perfect choice.

  • Doubles as a sidewall bottom tie-down for wind protection: Secure your sidewalls during windy conditions and ensure the stability of your outdoor tent or structure.

  • Includes two C1071 D-Tube Slide clamps with studs for secure mounting: Easily attach the Bally Rail to a variety of surfaces, ensuring a solid and dependable connection.

  • 10ft steel bar set with push-button connectors for easy assembly: The push-button mechanism makes the assembly process quick and straightforward, even for those with limited DIY experience.

  • Steel Pole 20 feet with welded tab: With its robust construction, the Bally Rail can withstand heavy loads and provide long-lasting support.

Summary

The 20 ft long  Rail is an indispensable addition to any workspace or outdoor tent setting. Its versatility, durability, and ease of installation make it the perfect choice for a wide range of applications. With its ability to enhance partitions, counters, safety rails, and sidewall protection, this is a must-have for those seeking a practical and dependable solution. Whether you’re setting up a temporary workspace, organizing a party, or securing your outdoor tent, the Bally Rail is the versatile tool you need.

Note: If purchased as a set, there will be a center vertical bracket to support the middle.
  • Shipping Weight: 75 lbs.

Double Tube Corner Two Tab Screw Style

by

Double Tube Corner Two Tab Screw Style

It is used to control brackets on corners, slide and brace with cables, weigh down sidewalls, corner braces, and much more use.

Please use with double tube pole commercial tent system.





  • Part: C1134-CD
  • Shipping Weight: 5 lbs.

Bally Rail with Custom Graphics 36 in. x15 ft.

by

Introduction

Bally Rail with Custom Graphics 36 in. x15 ft.

Comes complete with:

2 – Quick clamp 10 ft. Steel Bally Set
1 – Large 3 ft. x 10 ft. with pocket banner.  (Graphics size is 36 x 115)

Elevate your workspace or outdoor tent setup with this Set 10 ft. with Custom Graphics, a versatile solution for partitions, counters, and safety rails. Its adaptability extends to securing sidewalls during windy conditions, ensuring stability and protection. This sturdy rail comprises a 10ft steel bar set, conveniently connected by a push button for seamless assembly.

Custom Graphics

** This sign modification is to be placed on tents only. **
** We can build continuous side rails using corners and tee railing.  Please call for details. **

Please choose from the available graphics options.  The lowest price will include one color (red, white, black or blue) decal work.  Full color options are available.

Shipment is via truck only.

Packing List:

  • Shipping Weight: 75lbs

One Way D-Tube Quick Clamp

by

This One Way Double Tube  Quick Clamp is a versatile clamp that can be used to:



1. Add a leg.

2. Clamp additional support to existing double tube frame

3. Add rafter, hip, or sign structure.





  • Part: C1098-QC
  • Shipping Weight: 6 lbs.

Umbrella using 2″ Pole 18′-8″ Span

by

This concept umbrella span of 18’8″ and made from 2″ pole to maximize the aluminum poles stocked by most rental companies.

We use 4 poles and 1 long main pole coupled with slide fittings to generate this type of structure.  Please note, combination of poles can be used to create the

umbrella.  The top need to be made special.







The concept tent explanation:

We will manufacture the tent to the best possible standard to be as close to the illustration as possible.  Since this is a custom product, we will need to sell the product complete to be able to setup in house as well as test for possible flaws.  The products will not have any engineering or wind loads calculations attached.  This custom manufactured products will need more time than usual to make since we have to do it from scratch.  Please consults with our team for any questions.  Purchasing this product assumes that you know all the limitations of this and how to set up commercial products.  We will not have any documentations of this product and will only available via phone to help.

Conversion Kit Standard to Quick Peak for 30 to 40 Wide Tent

by

This kit is to convert Standard West Coast Style Tent to a Quick Peak Style Tent.  The kit comes with all necessary parts to convert 30 or 40 wide tent into a Quick Peak Style Tent

For reference, the parts are as followed:

1 ea. C1058-B, Lightweight Crown Adapter
1 ea. C1062, Mast Flag for Quick Peak (Maybe 2 pcs for shipping)
1 ea. 7′-8″ Pole (Drill at  5′-3″ for 30x , and at 7′-6″ for 40x)
3 ea. A02, Canopy Pins

** This kit will fit standard 8 way or 6 Way Crown (not included!).  You may need this to make the kit complete if tent is missing the part. **

*** When setting up for a 30 or 40 wide tent, please have several people helping because the top is very heavy and may tear fabric easily. ***

** Please note that this set does not come with 4 pieces tension corners that maybe needed to square the tent.  You may need to replace corners to ease setup because the corners will help guide and square the tent tops.  Refer to C1181 (Tension Corners) to see more information. **  Also the long pole may be made into two pieces to help ease shipping.

  • Part: C1058-Kit
  • Shipping Weight: 15 lbs.

Adapter fitting for Quick Peak

by

For converting 20X, 30X & 40X Frame Tent to Quick Peak Tent.

This conversion fitting needs to be used with 6 Way Crown (C1006) or 8 Way Crown (C1007) with an inner diameter of 3.5 in.

  • Part: C1058-B
  • Shipping Weight: 9 lbs.
Parts that you might need are:
– C1007 8 Way Crown
– C1062   Mast Flag For Quick Peak
– C1057-R  Top Tee for QP.

2″ Stamped Triangle D-Ring – 10K Yellow

by

2 in. Flat Stamped D-Ring can be used in a variety of applications. Primarily to tie down ratchet ropes to stakes.

We can create custom webbing and tie-downs for you.  Call us for more details.

Part: DR61

2in. Slide Snap with D-Ring

by

Slide Snap with D-Ring

use to control brackets, slide and brace with cables or ropes, weight down sidewalls, and much more use.

Please use 2 in. pole commercial tent system.

Inside Diameter: 2.1 in

  • Part: C1133-C
  • Shipping Weight: 3lbs

20×20 Sign Package 2

by

Introduction to 20×20 Sign Package 2

This is a Graphic Logo Promotional Tent Package with Color Band

A Complete Quick Peak Tent 20×20.  This 20×20 Sign Package 2 tent is combination of graphics along with color banding

This is What you will get:

1  20×20 Quick Peak Frames with Fittings

Quick Peak Tent 20×20 with Graphic Logo

1  20×20 White Quick Peak Tent top, with Fire retardant / Commercial Fabric.  With banded fabric and logo in the front.

1 – Logo size limit to 50×50 in. with one location imprint.



*** Price do not include Art recreation and other Art fees:

Common Art fees are:

  • Art Recreation fee
  • Art preparation fee
  • Contour cut fee

This also will not include:

Extra Stakes and ropes for tent tie down to the ground.  (You may need 8 of each depends on what type of terrain you are putting your tent in)

Setup and takedowns
Cost of securing tent
additional graphics or lettering
File Preparation

Please call us for more details.

Sales Ref: Master Order: 2122349

  • Part: QP20X20-SPC-3
  • Shipping Weight: 450lbs

Why Buy From Us…

At Central Tent, our tents are made in the USA and are built with components that meet strict guidelines.

Within our facilities, our tents can be customized to your exact specification.  Below are some of the things that we can do to make your tents unique:

  1. Add graphics / decal to any tent
  2. Create custom sizes (such as 20×25, for example)
  3. Cut legs to specific sizes
  4. Make customized leg sizes
  5. Remove / add legs to fit your footprint
  6. Add custom sidewalls
  7. Print custom sidewalls
  8. Brace some of the legs / perimeter poles for high winds
  9. And much much more…

Call us with your specifications and we will help you with your tent needs.

Contact Central Tent’s Team

If you have any questions or comments, you can contact Central Tent by messaging us here on this website, calling us at 800-997-8368, or using the email form below, and we will get back to you as soon as possible.

  • This field is for validation purposes and should be left unchanged.

5 Colors Horizontal Quick Peak Tent

by

This concept tent is a 20×20 Quick Peak Tent with five horizontal colors.  It will fit a 20×20 Quick Peak Style frame.  It will also fit the standard 20×20 tent frame using conversion kit.

All Tent colors is available.   Red, White, Blue, Yellow, Burgundy, Tan, Green, Hunter Green, Orange and Purple.

Graphics can also be pasted on to the tent.  We recommend to decal it on the color materials.

This configuration is available from 10×10 through 20×20.  A 30 and 40 wide is available using conversion kit.



The concept tent explanation:

We will manufacture the tent to the best possible standard to be as close to the illustration as possible.  Since this is a custom product, we will need to sell the products complete to be able to setup in house as well as test for possible flaws.  The products will not have any engineering or wind loads calculations attached.  This custom manufacture products will need more time than usual to make since we have to do it from scratch.  Please consults with our team for any questions.  Purchasing this product assumes that you know all the limitations of this and how to set up commercial products.  We will not have any documentations of this product and will only available via phone to help.

30×30 Barn Style Tent – A

by

This concept tent is a 30×30 tent with a purlin that add a volume onto the tent top.  This tent add another shape onto the tent and make the tent have more room inside.

  • Picture shown is tension valance. Standard valance or straight valance can also be done.
  • Pricing of this tent is based on 2″ frame, White 15 oz. block out one piece tent top.
  • Other fabric and tent types are available.

All Tent colors are available.   Red, White, Blue, Yellow, Burgundy, Tan, Green, Hunter Green, Orange and Purple.

Graphics can also be pasted on to the tent.  We can provide graphics quote if needed.

This configuration should be available for all sizes call us and ask for details and prices.



The concept tent explanation:

We will manufacture the tent to the best possible standard to be as close to the illustration as possible.  Since this is a custom product, we will need to sell the product complete to be able to setup in house as well as test for possible flaws.  The products will not have any engineering or wind load calculations attached.  This custom manufacture products will need more time than usual to make since we have to do it from scratch.  Please consults with our team for any questions.  Purchasing this product assumes that you know all the limitations of this and how to set up commercial products.  We will not have any documentations of this product and will only available via phone to help.

20×30 Horizontal Colors Tent

by

This concept tent is a 20×30 tent with approximately half of the top is one color and other half is another.  The valance is also another color.

  • Picture shown is straight valance. Standard valance can also be done.

All Tent colors available:   Red, White, Blue, Yellow, Burgundy, Tan, Green, Hunter Green, Orange and Purple.

Graphics can also be pasted on to the tent.  We recommend to decal it on the color materials.

This configuration should be available for all sizes call us to ask for details and prices.



The concept tent explanation:

We will manufacture the tent to the best possible standard to be as close to the illustration as possible.  Since this is a custom product, we will need to sell the product complete to be able to setup in house as well as test for possible flaws.  The products will not have any engineering or wind loads calculations attached.  This custom manufactured products will need more time than usual to make since we have to do it from scratch.  Please consults with our team for any questions.  Purchasing this product assumes that you know all the limitations of this and how to set up commercial products.  We will not have any documentations of this product and will only available via phone to help.

Surcingle (Clasp)

by

Metal Surcingles are used on tent tops to expand parts of the tent in expandable modules.

This product is coated steel.

  • Part: BK1012



Umbrella Sand Stake 2″

by

Umbrella Sand Stake 2″

This fitting is made to support steel or wood poles that comes with umbrellas.  The receiver can receive up to 2″ diameter poles.   Using hammer or staking equipment to strike it in sand or soft ground to secure the fittings.

Introducing the Umbrella Sand Stake 2″, a revolutionary accessory designed to redefine your beach-going experience. This innovative sand anchor is meticulously crafted to provide unparalleled stability for your beach umbrella, ensuring that your seaside retreat is not only stylish but also secure.

Crafted from durable, corrosion-resistant materials, the Umbrella Sand Stake 2″ boasts a robust 2-inch diameter auger that effortlessly drills into the sand, creating a solid foundation for your umbrella. Its cutting-edge design takes into account the challenges posed by windy beach conditions, delivering a reliable solution to keep your umbrella firmly anchored.

Say goodbye to the frustration of traditional umbrella anchors that struggle to withstand the forces of nature. The Umbrella Sand Stake 2″ is engineered to resist the strongest winds, offering peace of mind while you relax under the shade. Its user-friendly installation process requires no special tools, making it an ideal companion for beachgoers of all ages.

Designed with convenience in mind, this sand stake is lightweight and portable, making it easy to transport to and from the beach. Its compact design ensures that you can enjoy a stress-free setup wherever your coastal adventures take you.

Elevate your beach experience with the Umbrella Sand Stake 2″ – where reliability meets convenience. Embrace worry-free relaxation and make a statement on the sands with this essential accessory that promises to redefine your beach day essentials.

This products is not made for concrete or hard asphalt.

  • Part: STK-07
  • Shipping Weight: 5 Lbs

10×10 Complete Frame Tent

by

This commercial grade tent that has been widely used by professional renters for various events and purposes such as weddings, warehouse storage, rental businesses, and amusement centers. These tents are designed to withstand heavy usage and harsh weather conditions, making them a reliable option for any occasion. One of the key features of these tents is their interchangeability, allowing them to be customized to meet specific needs and requirements. Additionally, they offer great adaptability, making them an excellent investment for long-term use.

10×10 Standard Frame Tents consists of three major components:

  1. Tent Tops:
    1. Blackout 15 oz. White Vinyl Fabric
    2. Fire Retardant Fabric (California Fire Marshall Standards that meets and exceed NFPA 701 National standards)
    3. Stainless Steel Buckles
    4. Scallop Valance
    5. Sidewall rope line to hang optional sidewall to the tent
  2. Tent Frame:
    1. 2″ Aluminum Tube: 0.125 thick
    2. Steel Coated Fittings
    3. Frame components are interchangeable to make other sizes.
    4. Many accessories available to expand and customize with a wide range of fittings.
    5. No middle poles

Suggestion – additional tie-downs may be needed:

8 – Stakes (on soft or asphalt ground)
8 – Ratchet Ropes (For tie-downs)
4 – Base Plates




* In addition to stakes; rain gutters, sidewalls, and other accessories may also be required to complete the setup of the tent. Moreover, tie downs and braces may be necessary to ensure the tent stability in windy conditions.

* We also carry color tops for this tent – Colors include: red, white, blue, green, yellow, or combination.   Color tops can also be horizontally or vertically striped.  Additional charges will apply.  Please call for details.

* A clear tent top for this tent is also available.  Please call for details.

  • Part: SET10X10
  • Shipping Weight: 150 lbs.

Leg Spreader 4, 8 or 12 in.

by

Put two tents together with one leg.

This fitting also makes space for the two tents to space out equally.  These features can be useful to properly use rain gutters effectively.

The usual legs to place are 7ft (6′-8″) and make to match the 8 ft (7′-8″) leg size.

  • Part: C1073
  • Shipping Weight: 8lbs

Hexagon Corner Fitting

by

This 6-sided corner fittings will make Hexagon tent and will need one 6 way Hexagon crown to complete the tent.

The tent can be in size from 10×10 to 40×40

The size of the hexagon is measured from edge to edge of the hex.

  • Part: C1340
  • Shipping Weight: 6.1lbs

Sidewall Rope Braided White 1/4″ 1,000 Ft

by



This rope is what we use for our sidewall line.  The rope features a strong braided type and very minimal stretch.  UV resistant so it will not break down in the sun.  Features soft touch, sewable, and very minimal stretch.

Sold in 1,000 feet spool only.



Part: Rope001

Sidewall Rope Braided White 3/16″ 1,000 Ft

by

This rope is what we use for our sidewall line.  The rope features a strong braided type and very minimal stretch.  UV resistant so it will not break down in the sun.  Features soft touch, sewable, and very minimal stretch.

Sold in 1,000 feet spool only.

Part: Rope001

On Sale

Here is a list of items currently on sale at Central Tent.

Visit Full Store

Tent Sidewall (Commercial) Types and Options

View Sidewalls in Shop
Standard Tent Sidewall solid style, usually in white 15 oz., with stainless steel buckles, white pole straps, bottom pole pocket, white Velcro., and stake ties.
8×20 Windows (2) Sidewalls Standard with white 15 oz., blackout.  stainless steel buckles, poles straps, bottom pole pocket, white Velcro, and stake ties.

Cafe Sidewall has a large clear panel in the middle with approximately 12 ft. white border on the top and sides.  Bottom border is about 36 in.

Lap and Snap Sidewall (8×20) 10 in. space to wrap around the leg poles to itself and secure the sides of the sidewall in place.  Also meant to connect to each other.

Lap and Snap sidewall with windows (8×20) 10 in. space to wrap around the leg poles to itself and secure the sides of the sidewall in place.  Also meant to connect to each other.

Emergency Exit Sidewalls (8×20) with velcro closure door to ensure occupant have access to outside the tent.

Sidewall 8 or 10 ft adjustableSidewall 8 or 10 ft adjustable: fold over the longer buckles strap to use the 8 ft. wall.  A combination of various height can be use.  Great for unknown or uneven legs or hill installation.

Sidewall AC HVAC connection
Sidewall HVAC opening
Sidewall HVAC opening: 12 to 16 in connection to air conditioning or heating source.  Sides can be kedered, lap and snap or other compatible types.
Sidewall - zipper with clear
Sidewall – zipper with clear
Sidewall Combo Emergency exit with windows 8x20
Sidewall Combo Emergency Exit with Windows 8×20
Sidewall Freezer type entry
Sidewall Freezer Type Entry
Sidewall food booth 8x10 with windows
Sidewall Food Booth 8×10 with Windows
Sidewall Keder sides with middle opening
Sidewall Keder Sides with Middle Opening
Sidewall Keder sides without mid opening
Sidewall Keder sides without mid opening
Sidewall with 48 in. door
Solid Sidewall with 48 in. Velcro or Zipper Door

There are many styles and types of Tent Sidewall to help our customers to ensure compatibility and conveniences.

View Sidewalls in Shop

Tent Sidewall Standard Features:

  1. Fabrics: 15 oz., Laminate materials. Anti-Wicking, Fire Retardant (California State Fire Certified), NFPA-701, and more.
  2. Buckles and Grommets are made using Stainless Steel.
  3. Webbings are UV resistant and waterproof.
  4. Ropes are UV resistant, waterproof, and non-stretch.
  5. We use an RF heat seal process to build the parts, ensuring a stronger bond.
  6. Clear sidewalls use heavy 20 Gauge (Cal-fire certified).
  7. Meshed sidewalls are also Cal-fire certified.
  8. Standard sidewalls will include top pole straps and bottom pole pockets for flap reinforcements.

Warning:
Tent sidewall are made of the same fabric as the tent tops. Since the sidewalls typically hang down from the tent top, the fabric is stressed. All points need to be anchored securely to prevent flapping. Most damage occurs from winds whipping the fabric against the frame or against the ground. To prevent damage to the sidewalls:

  1. Tighten all anchor points so the sidewalls don’t flap around.
  2. Secure the bottom of the sidewall with poles, ropes, or other tie-downs.
  3. If heavy winds are forecast for the area, take down the sidewalls. Consider taking down the entire tent.
  4. Clear sidewalls need to be handled with extreme care. Clear will tear very easily. Do not pull clear too tight. Unlike its vinyl counterpart, clear fabrics do stretch. Do not allow clear tent fabric to freeze or be exposed to high heat conditions. Transparencies will deteriorate over time, especially with extreme temperatures. Clear will shrink in a cold environment and expand in hot temperatures.

Sidewall 10×10

by

Commercial Tent Sidewall 10′ X 10′.  10′ high x 10′ wide

Made out of Commercial Grade Vinyl Laminates.

Features:

* Fire Retardant material meets the highest California Fire Marshall Standard
* Commercial Grade Vinyl features three or four layers of vinyl
* Stainless Steel Buckles on top of the wall for long lasting use
* Pole strap to make sure the sidewall weight is evenly supported
* Velcro closure for connecting to other sidewall system
* Stainless Steel Grommets for long lasting use and prevent rust-dirt
* Stake Strap ties the wall to the ground
* Pole pockets to prevent excessive flapping in windy situation
* All stitches are sewn using highest quality thread
* RF heat seal for long lasting seams

Material available in 15 oz. standard blackout
Standard colors are white.   Special Colors available: Red, Blue, Green, Fuchsia, and Black

All sidewalls can have different options.  Please inquire for details about special options

  • Part: SW10x10
  • Shipping Weight: 23lbs

Tent Diagrams – Central Tent

This is a list of PDF versions of Central Tent’s tent diagrams.
<< Click Here for Full Catalog >>

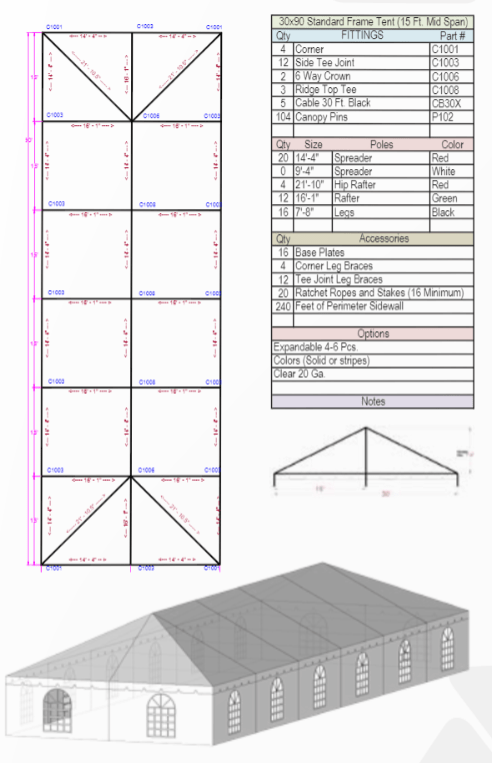

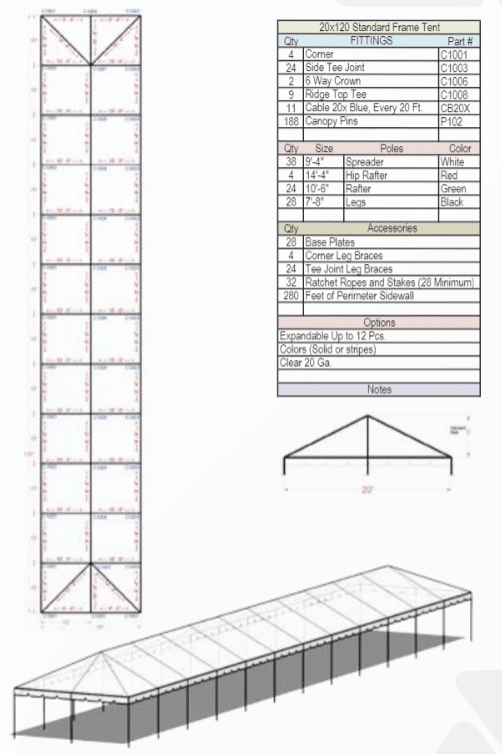

Standard Style 2 in. Frame Tent:

Quick Peak Style Tent:

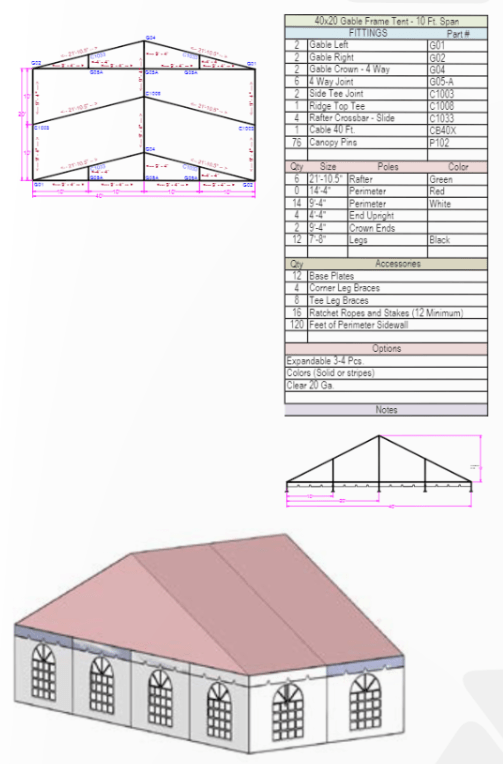

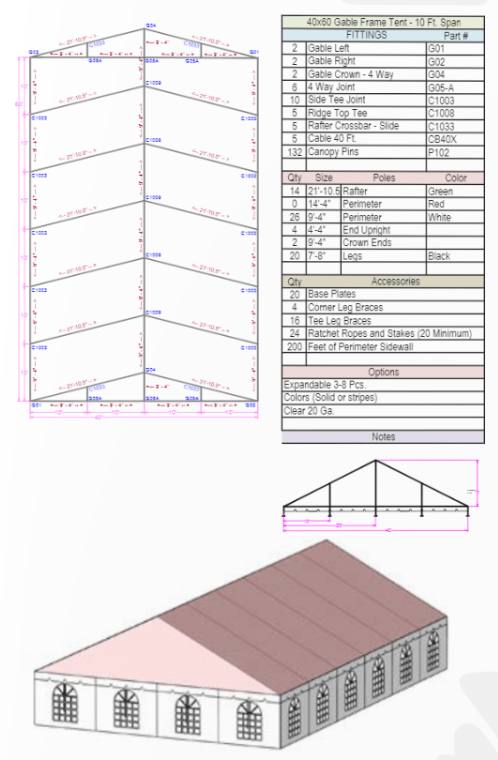

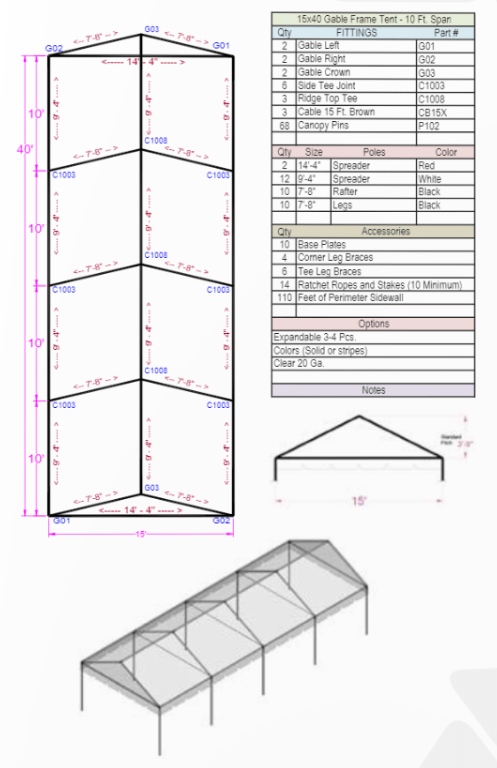

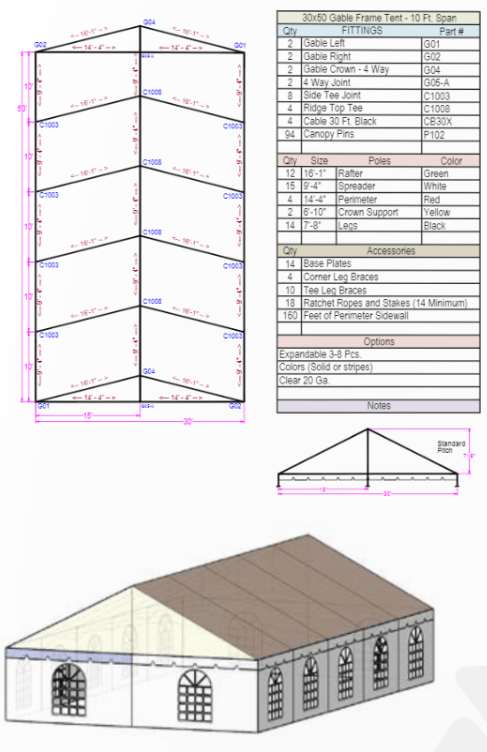

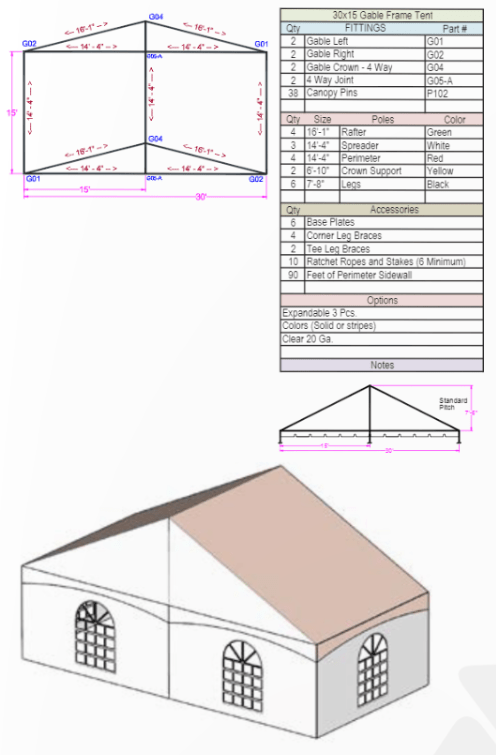

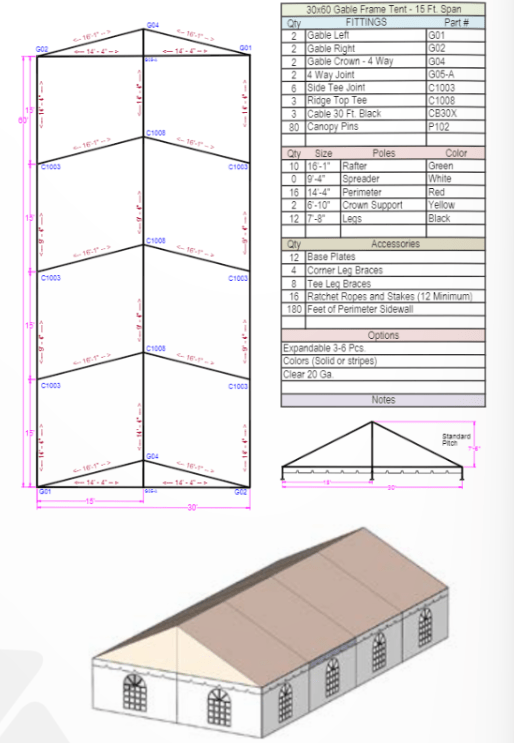

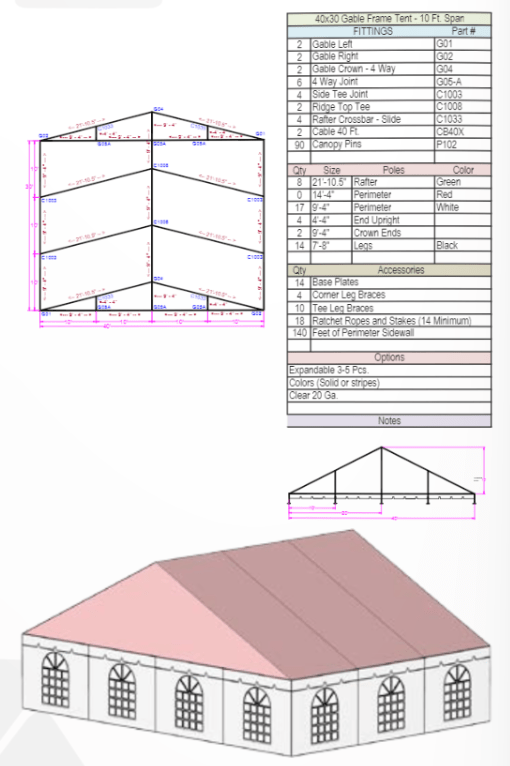

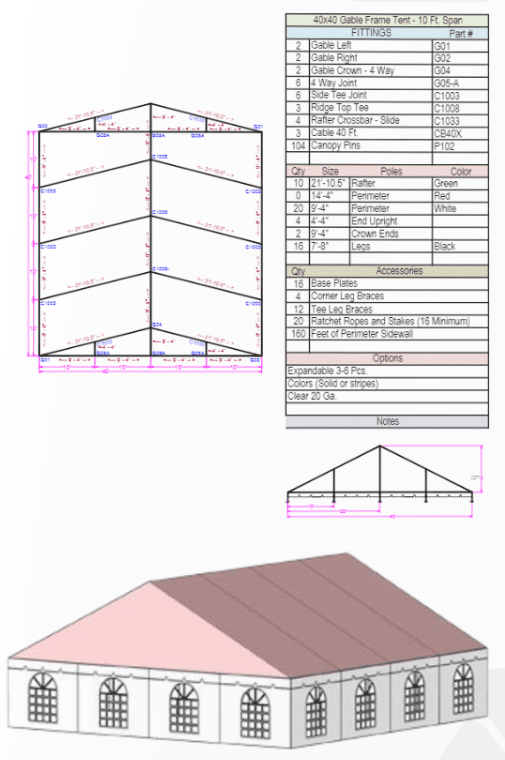

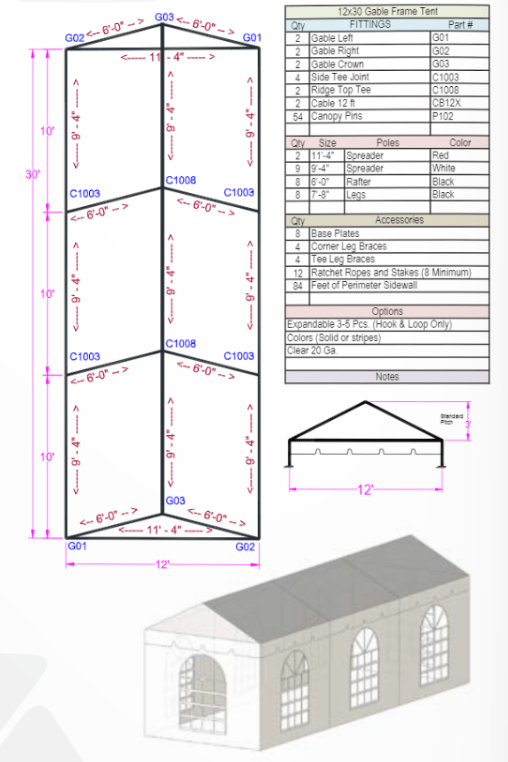

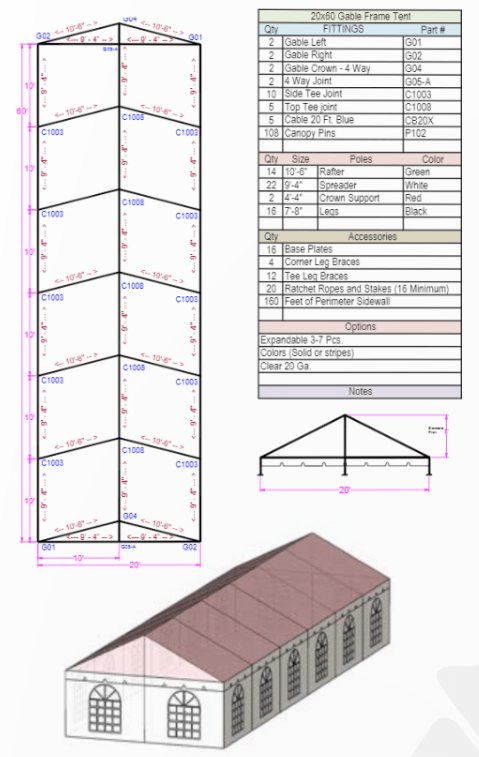

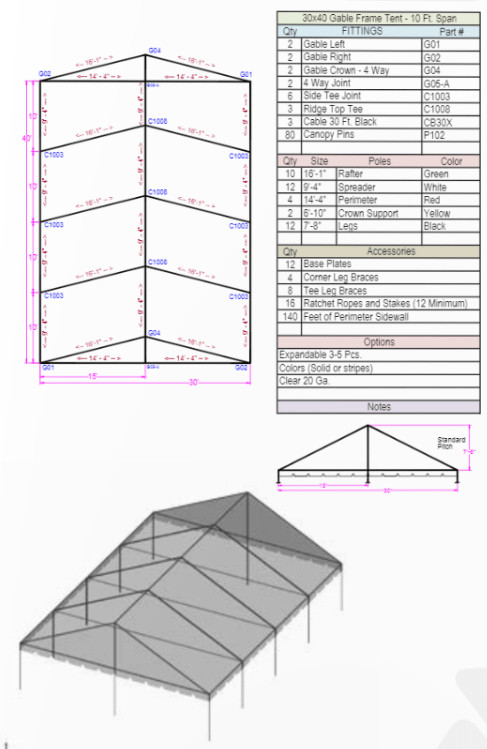

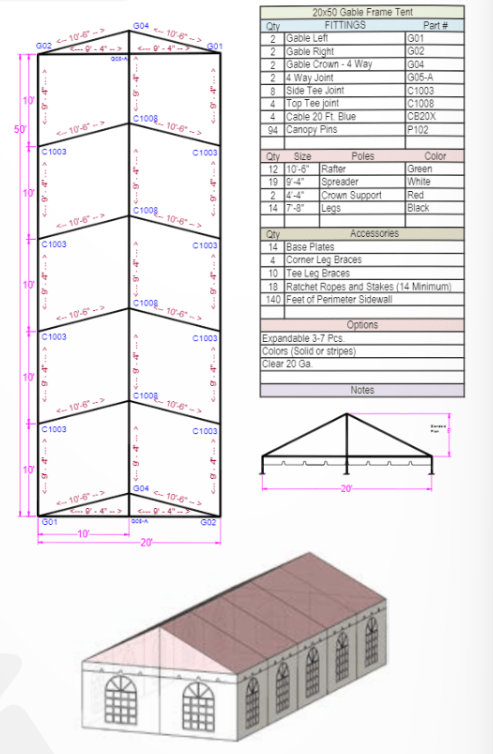

Gable Style Tent:

Tension Frame Style Tent:

Double Tube (D-Tube) Standard Hip Style Frame Tent:

Gable Extension Style Tent:

Quick Track Keder Tent:

Octagon Style Tent:

Octagon Tension Style Tent:

Hexagon Style Tent:

Quick Peak:

Quick Peak Conversion:

Standard:

 L Shape Tent:

Summit Series High Peak Tent:

***** SPECIAL TENT *****

Copyright © 2025 Central Tent



Subscribe to Our Newsletter!

Sign up for our newsletter to receive periodic information and special promotions for our products.
